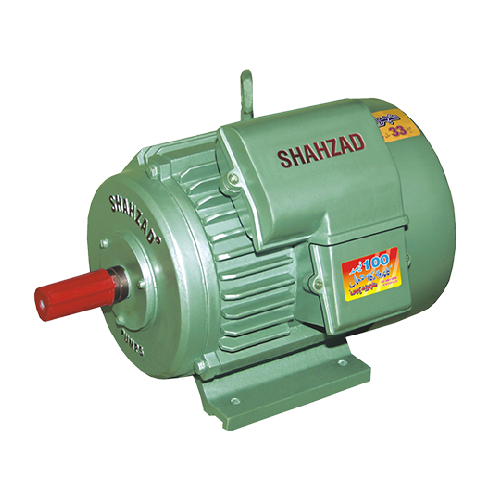

Electric Motor (0.5 HP to 2 HP)

The Shahzad Pumps Electric Motor series is designed to deliver reliable performance across a wide range of applications. Available in power ratings from 0.5 HP to 2 HP, these electric motors provide efficient and stable power solutions for domestic, agricultural, and light industrial needs.

Motor Data Of 1.5HP 2inch

MOTOR
kW
Volt
Hz
1.5 HP
1.1 kW
220 V
50 Hz
A
RPM
IP Rating
Capacitor
7.8 A
2850 r/min
IP 68
45 µF / 450V
Power Factor (COSΦ)
0.93

Pump Data of 1.5HP 2inch

MOTOR
kW
Volt
Hz
1.5 HP
1.5 kW
220 V
50 Hz
RPM
Flow Rate (Min)
Flow Rate (Max)
Recommended Flow
2850 r/min
50 L/min
83 L/min
66 L/min
Head (Max)
Head (Min)
Recommended Head
78 m
40 m
62 m

Motor Data Of 2.0HP 2inch

MOTOR
kW
Volt
Hz
2.0 HP
1.5 kW
220 V
50 Hz
A
RPM
IP Rating
Capacitor
11.2 A
2850 r/min
IP 68
55 µF / 450V
Power Factor (COSΦ)
0.93

Pump Data of 2.0HP 2inch

MOTOR
kW
Volt
Hz
2.0 HP
1.5 kW
220 V
50 Hz
RPM
Flow Rate (Min)
Flow Rate (Max)
Recommended Flow
2850 r/min
133 L/min
199 L/min
166 L/min
Head (Max)
Head (Min)
Recommended Head
45 m
21 m
37 m



Categories ,

The Shahzad Pumps Electric Motor series is designed to deliver reliable performance across a wide range of applications. Available in power ratings from 0.5 HP to 2 HP, these electric motors provide efficient and stable power solutions for domestic, agricultural, and light industrial needs.

Features and Benefits:

  • Wide Power Range: Offered in multiple power levels (0.5 HP to 2 HP) to suit different applications.
  • Energy Efficient: Engineered to maximize energy savings, reducing operational costs and minimizing environmental impact.
  • Durability: Built with high-quality materials and IP66/IP68 protection ratings for resistance against dust and water, ensuring long-term use even in harsh conditions.
  • Smooth and Quiet Operation: High RPM (2850 r/min) for stable performance with minimal noise and vibration.
  • Thermal Protection: Equipped with a thermal overload protector to prevent overheating and extend motor life.
  • Power Factor Optimization: Integrated with capacitors (25 µF – 45 µF depending on the model) for efficient power factor correction.
